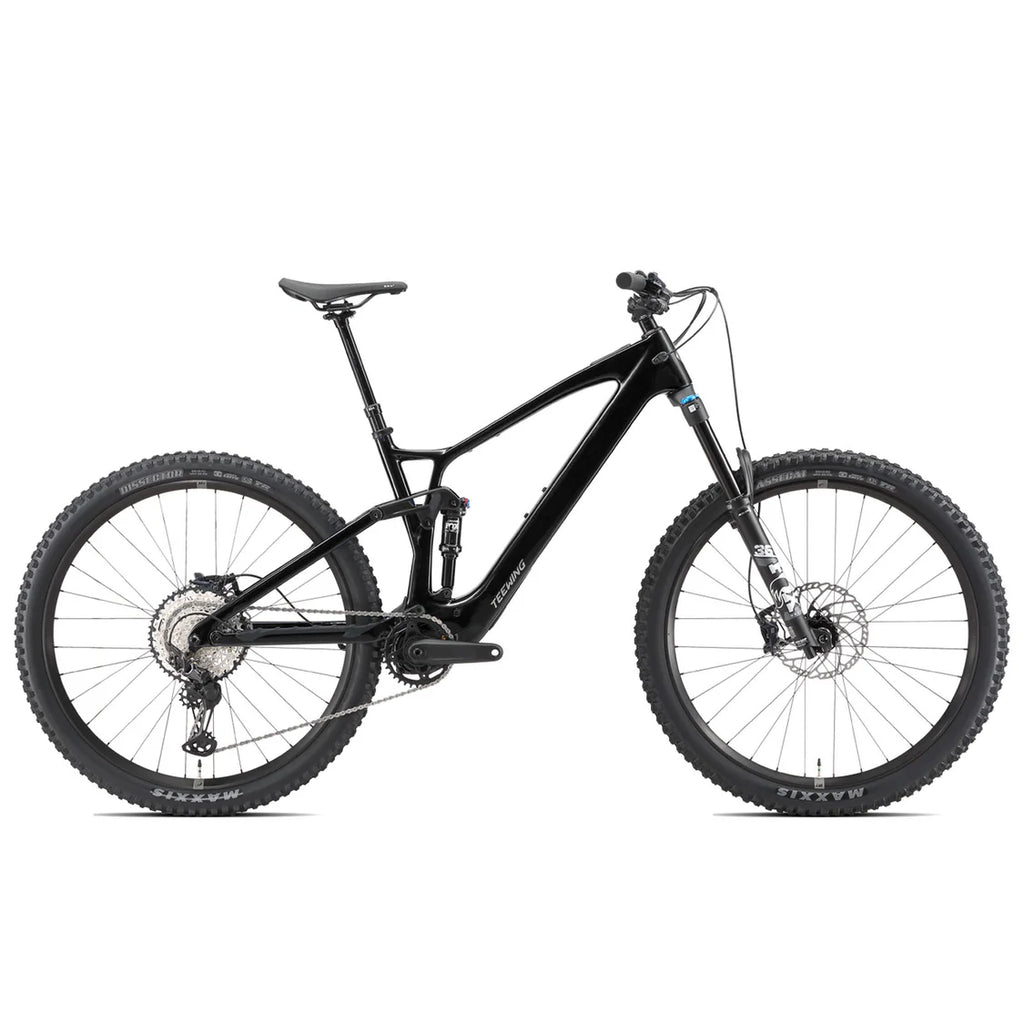

Teewing Turbo Force XT Small

Black

$6,750.00 USD

Teewing Turbo Force XT Small

$6,750.00 USD

In stock

The Turbo Force platform is built around a simple idea — balance.

Balance between power and control. Between climbing efficiency and descending capability. Between responsiveness and stability.

With 150mm of rear travel, a refined four-bar suspension system, and the Avinox M2S drive unit, Turbo Force is designed to perform across a wide range of terrain without compromising ride feel.

E-bike System

Avinox M2S Drive Unit: 130 N·m (150N·m Boost)

Avinox Integrated Battery: 800Wh

Avinox Fast Charger: 12A/508W

Avinox Screen: 2-inch OLED Control Display

Avinox Wireless Controllers: Right and left sides

Rear Shock

FOX 36 Float Rhythm

185x55mm · Trunnion Mount · EVOL LV Air Spring · 2-Position Adjustment · 0.2ci Volume Spacer

Fork

FOX 36 Float Rhythm (GRIP)

29”· 160mm Travel · GRIP Damper · Sweep Adjust · 44mm Offset · Boost 15x110mm · Tapered 1.5” Steerer

Transmission

Rear Derailleur: Shimano XT M8100, long cage

Shift Levers: Shimano XT M8100, 12 speed

Chain: Shimano SLX CN-M7100, 120LINKS

Chainring: Prowheel FD04 BCD=104, 11/128*36T, BED

Cassette: Shimano SLX M7100, 10-51, 12 speed

Crankset: Teewing SL Crank 155mm

Brakes

Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper

Shimano RT66, 6-bolt, 203mm

Wheels

Formula -M7 Hybrid

Spokes: SAPIM E-Light J-bend

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Rim: Alloy, 29'', 30mm internal width, 32H, tubeless ready

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR

Handlebar

Teewing Enduro AL7075-T6 Handlebar 8-degree upsweep, 8-degree backsweep 35mm rise, 780mm wide

Grips

VELO Enduro Grips

Stem

Teewing Enduro AL6061-T6, Clamping diameter: 35mm, Length: 40mm

Saddle

Selle Royal SRX Plus

Seatpost

EXA 31.6: L: 170mm; M: 150mm; XL: 190mm

Accessories

User Manual, Shock Pump, Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Recommended products

Teewing Flux One Enduro EMTB

Avinox M2S
Front Travel - 180mm
Rear Travel - 170mm (29in R) 178mm (27.5in R)
Adjustable geometry
High-pivot, idler suspension layout
MY27 Fox Suspension
800Wh internal battery
Full carbon, CAT 5 frame
Weight - 22.9kgs
Front Wheel - 29in
Rear Wheel - 29in or 27.5in
Maxxis DoubleDown Tires

Available as:

Teewing Flux One A
Teewing Flux Pro
Teewing Flux Frameset

Pre-production model illustrated

Teewing—it’s not a name you’re going to forget!

We first entered the EMTB market as a launch partner of the Avinox M1 with our Turbo Force Trail bike, and now, we’re once again a launch partner with the all-new Avinox M2S, but this time we’re going bigger, faster and riding harder!

Introducing the Teewing Flux One!

The Flux One, is one of the longest-travel, most aggressive Avinox-powered bikes out there. Built to handle everything you can throw at it! Think of it as your personal uplift—skip uplift van queues, explore further, and lap your favourite trails while absolutely hauling.

With the Flux, we pushed for more versatility and performance, developing a new high-pivot suspension platform with a robust idler design offering up to 178mm of rear wheel travel, matched to a 180mm travel MY27 Fox 38 up front.

2 complete builds of the Teewing Flux will be offered (along with frameset options in certain markets), both sharing the same full carbon CAT 5 frame, powerful Avinox M2S motor system, integrated 800Wh battery, 4-piston brakes, and fit-for-purpose DoubleDown tyres.

Frame features

Frame weight: 3000g (with hardware w/o rear shock)
Adjustable geometry
Adjustable chainstay
Mixed wheel or full 29in
CAT 5 rated frame
Internal cable routing ( with rattle free internal cable and hose channels )
1 x Bottle mount
1 x Accessory mount
Rubber downtube, chainstay, and main pivot protection
UDH hanger
Double row Horst link bearings
Integrated Avinox display
Torque rating on all bolts

Mullet or Full 29in

With dual flip-chips, the Flux can switch between high and low geometry, while a Horst link flip-chip adjusts chainstay length and bumps rear travel from 170mm to 178mm. It also allows the use of a SRAM UDH hanger—so no worries there.

High or Low

In the low setting the seat tube angle sits at 77.7° (29”) or 78° (27.5”), with a head angle of 63.2° / 63.5°. Flip to high and that steepens to 78° / 78.3° and 63.5° / 63.8°

Frame Protection

To match the quieter, more powerfulAvinox M2S, we’ve added extensivechainstay and downtube protection tokeep things silent and looking fresh.For extra peace of mind,RideWrapkits are already available

Accessory Mounts

With more power and range toexplore, we’ve made room for a waterbottle and added an accessory mountunder the top tube so you can keephydrated and have your tools with youjust in case!

Trouble free cable routing

Internal cable routing runs throughlarge carbon sleeves—keeping thingsquiet, clean, and easy to maintain.We’ve paid close attention to dropperrouting, so nothing gets jammed andadjustments are nice and simple.

CAT 5 Frame (CAT 4 Complete Bike)

The full carbon CAT 5* frame features low standover, comes in Medium, Large and XL, sizes and houses a large integrated 800Wh battery.

Magnetic, sealed charger cover

An updated magnetic, weather-sealed charger cover keeps the port protected in all conditions.

*While the Teewing Flux Frame is tested and rated to CAT 5 standards, some of the complete bike components are CAT 4 level. This is why Flux frames are labelled as CAT 4 and complete bikes are only CAT 4 rated.

High-pivot suspension

Being a (up to) 178mm travel bike, we didn’t want to simply reuse the 4-bar suspension system we first developed for the Turbo Force trail bike. Instead, we started from scratch to design a platform that offers incredible downhill performance and consistency, combined with the ability to provide amazing small bump support and traction when climbing.

After testing various designs our engineering team reached the conclusion that a high-pivot suspension design with an idler would give the characteristics we were after, giving the Flux that feel of a full-on DH race rig when you let off the brakes, but remaining supportive and composed with plenty of traction and grip when climbing back to the top for another run.

Through testing with riders across the UK, USA, Australia, New Zealand and Canada, we’ve been able to build a suspension platform and kinematics that builds con fidence through consistent and predictable behaviour.

Avinox M2S

Features

• Torque: 130Nm (150Nm Boost)
• Weight: 2.6kg
• Reduced pedal resistance (compared to M1)
• Reduced motor rattle (compared to M1)

Teewing Flux Avinox Features

•800Wh internal battery
• 1300W Peak Power with integrated 800Wh battery
• Integrated Avinox touch display in top tube
• Updated weather sealed magnetic charger port cover
• 155mm crank arms

Teewing Flux One A

•Frame: Teewing Flux One Carbon |170/178mm travel | MX or full 29in
•Shock: Fox Performance Float X | 205 x 65
•Fork: MY27 Fox 38 Performance Grip | 180mm
•Drive System: Avinox M2S
•Battery: Avinox integrated 800Wh
•Charger: Avinox Fast Charger | 12A/508W
•Rear Derailleur: SRAM Eagle 90 T-Type
•Shifter: SRAM 90 Eagle T-Type single click
•Cassette: SRAM CS XS 1270
•Chain: SRAM CN Eagle 70 T-Type
•Crankset: Teewing SL 155mm
•Brakes: SRAM Maven Base | 4 piston
•Discs: SRAM Centreline | 200mm
•Wheelset: Formula M7 | Alloy | 29 (F) 27.5(R) | 30mm internal rim width | 32H | Sapim J Bend Spokes | Sealed bearings
•Front Tire: Maxxis Assegai 29x2.35, 3C, MaxxGrip, DoubleDown
•Rear Tire: Maxxis Minion DHRII 27.5x2.5, 3C, MaxxTerra, DoubleDown
•Handlebar: Teewing Enduro Alloy | 35mm rise | 35mm diameter | 780mm wide | 8° upsweep | 8° backsweep
•Grips: Velo Enduro Grips
•Stem: Teewing Enduro 6061 | 40mm | 35mm diameter
•Seatpost: EXA Form | 31.6mm | M - 150mm | L - 170mm | XL - 190mm
•Accessories: User Manual | Torque Wrench | Shock Pump
•Weight: 22.9kgs
•Price:€6899 EU (ROW pricing TBC)
