The Flux One is Teewing’s answer to modern enduro riding — a full-power eMTB designed to go faster, hit harder, and climb stronger.
Built around a high-pivot suspension platform and powered by the new Avinox M2S motor, the Flux One delivers exceptional traction, control, and brutal climbing torque. Whether you're charging steep descents or grinding technical climbs, this is a bike that refuses to hold back.
With 180mm of travel, mullet wheel configuration or 29" front and rear, and a fully integrated system design, Flux One is engineered for riders who demand maximum performance on every trail.
E-bike System
Avinox M2S Motor, Max 130 N·m (150N·m Boost)
Avinox Integrated Battery: 800Wh
Avinox Fast Charger: 12A/508W
Avinox Screen: 2-inch OLED Control Display
Avinox Wireless Controllers: Right and left sides
Rear Shock
FOX Float X Performance
205x65mm · Trunnion Mount · EVOL LV Air Spring · 2-Position Lever · Low-Speed Rebound Adjustment
Fork
FOX 38 Float Performance (GRIP)
29”· 180mm Travel · GRIP Damper · 3-Position Adjustment (Open/Medium/Firm) · 44mm Offset · Boost 15x110mm · Tapered 1.5” Steerer
Transmission
Rear Derailleur: SRAM RD EAGLE 90 T-TYPE 12 speed
Shift Levers: SRAM 90 Eagle T-Type, Single Click, 12spd
Chain: SRAM CN EAGLE 70 T-TYPE 124 LINK
Chainring: SRAM Eagle Transmission E-MTB Chainring 104 BCD 36T
Cassette: SRAM CS XS 1270 T-TYPE 10-52
Crankset: Teewing SL Crank 155mm
Brakes
SRAM Maven Base 4-piston hydraulic disc
SRAM Centerline - F: 220mm / R: 200mm
Wheels
Formula -M7 Spokes: SAPIM E-Light J-bend
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Alloy, Front 29'',Rear 27.5”, 30mm internal width, 32H, tubeless ready
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Rear: Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
Handlebar
Teewing Enduro Alloy Handlebar 8-degree upsweep, 8-degree backsweep 35mm rise, 780mm wide
Grips
VELO Enduro Grips
Stem
Teewing Enduro Alloy 6061 Clamping diameter: 35mm Length: 40mm
Saddle
Selle Royal SRX Plus
Seatpost
EXA 31.6
L: 170mm M: 150mm XL: 190mm
Accessories
User Manual Shock Pump Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Weight*
22.9kgs / 50.4 lbs
Mullet or Full 29in
With dual flip-chips, the Flux can switch between high and low geometry, while a Horst link flip-chip adjusts chainstay length and bumps rear travel from 170mm to 178mm. It also allows the use of a SRAM UDH hanger—so no worries there.
High or Low
In the low setting the seat tube angle sits at 77.7° (29”) or 78° (27.5”), with a head angle of 63.2° / 63.5°. Flip to high and that steepens to 78° / 78.3° and 63.5° / 63.8°
Frame Protection
To match the quieter, more powerfulAvinox M2S, we’ve added extensivechainstay and downtube protection tokeep things silent and looking fresh.For extra peace of mind,RideWrapkits are already available
Accessory Mounts
With more power and range toexplore, we’ve made room for a waterbottle and added an accessory mountunder the top tube so you can keephydrated and have your tools with youjust in case!
Trouble free cable routing
Internal cable routing runs throughlarge carbon sleeves—keeping thingsquiet, clean, and easy to maintain.We’ve paid close attention to dropperrouting, so nothing gets jammed andadjustments are nice and simple.
Headset cable routing
And don’t worry—we don’t subscribe to
headset cable routing.
CAT 5 Frame (CAT 4 Complete Bike)
The full carbon CAT 5* frame features low standover, comes in Medium, Large and XL, sizes and houses a large integrated 800Wh battery.
Magnetic, sealed charger cover
An updated magnetic, weather-sealed charger cover keeps the port protected in all conditions.
*While the Teewing Flux Frame is tested and rated to CAT 5 standards, some of the complete bike components are CAT 4 level. This is why Flux frames are labelled as CAT 4 and complete bikes are only CAT 4 rated.
High-pivot suspension
Being a (up to) 178mm travel bike, we didn’t want to simply reuse the 4-bar suspension system we first developed for the Turbo Force trail bike. Instead, we started from scratch to design a platform that offers incredible downhill performance and consistency, combined with the ability to provide amazing small bump support and traction when climbing.
After testing various designs our engineering team reached the conclusion that a high-pivot suspension design with an idler would give the characteristics we were after, giving the Flux that feel of a full-on DH race rig when you let off the brakes, but remaining supportive and composed with plenty of traction and grip when climbing back to the top for another run.
Through testing with riders across the UK, USA, Australia, New Zealand and Canada, we’ve been able to build a suspension platform and kinematics that builds con fidence through consistent and predictable behaviour.
Josh Gleave
The high-pivot mullet setup worked really well for cornering, and the rear end just tracks the ground properly. It feels planted, especially when things get rough. On steep, rough terrain, it’s super forgiving. Honestly, it rides more like a downhill bike
Avinox M2S
• Torque: 130Nm (150Nm Boost)
• Weight: 2.6kg
• Reduced pedal resistance (compared to M1)
• Reduced motor rattle (compared to M1)
•800Wh internal battery
• 1300W Peak Power with integrated 800Wh battery
• Integrated Avinox touch display in top tube
• Updated weather sealed magnetic charger port cover
• 155mm crank arms

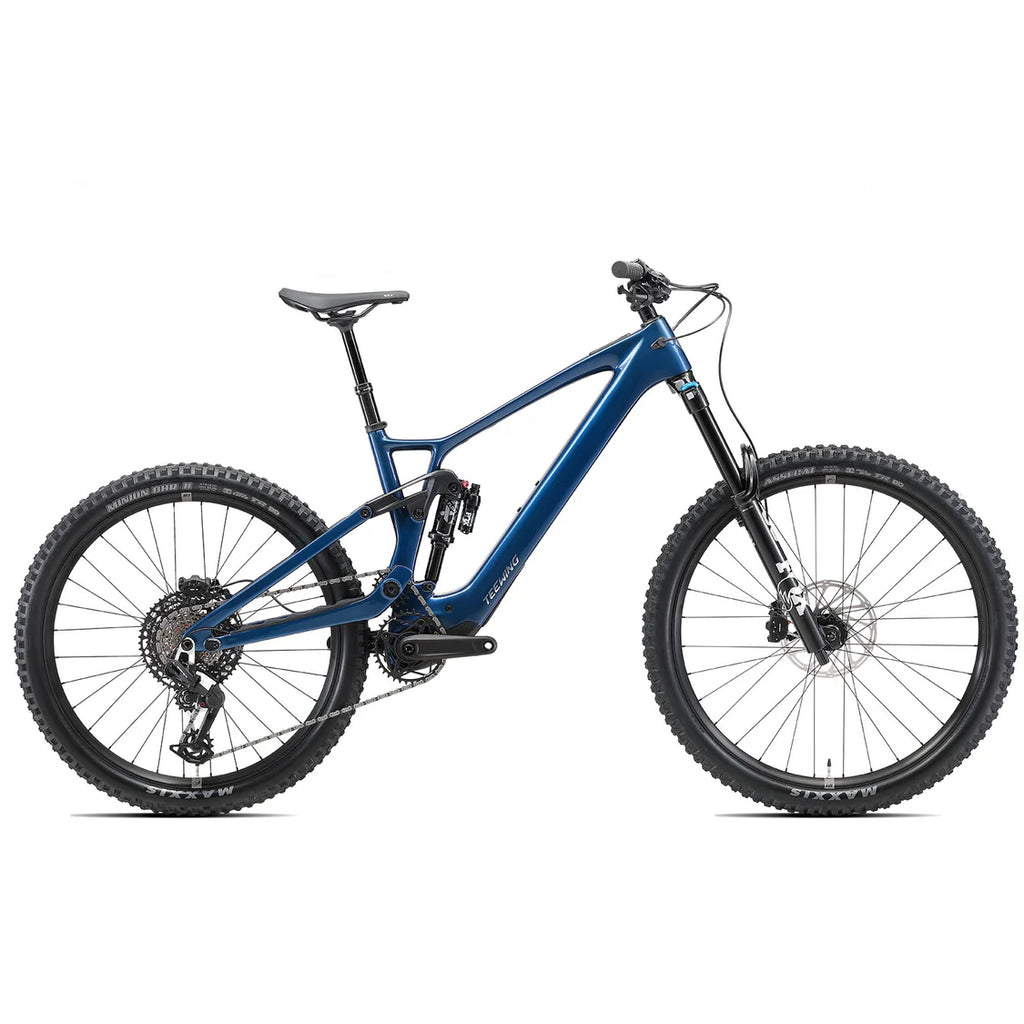

Teewing Flux One A
•Frame: Teewing Flux One Carbon |170/178mm travel | MX or full 29in
•Shock: Fox Performance Float X | 205 x 65
•Fork: MY27 Fox 38 Performance Grip | 180mm
•Drive System: Avinox M2S
•Battery: Avinox integrated 800Wh
•Charger: Avinox Fast Charger | 12A/508W
•Rear Derailleur: SRAM Eagle 90 T-Type
•Shifter: SRAM 90 Eagle T-Type single click
•Cassette: SRAM CS XS 1270
•Chain: SRAM CN Eagle 70 T-Type
•Crankset: Teewing SL 155mm
•Brakes: SRAM Maven Base | 4 piston
•Discs: SRAM Centreline | 200mm
•Wheelset: Formula M7 | Alloy | 29 (F) 27.5(R) | 30mm internal rim width | 32H | Sapim J Bend Spokes | Sealed bearings
•Front Tire: Maxxis Assegai 29x2.35, 3C, MaxxGrip, DoubleDown
•Rear Tire: Maxxis Minion DHRII 27.5x2.5, 3C, MaxxTerra, DoubleDown
•Handlebar: Teewing Enduro Alloy | 35mm rise | 35mm diameter | 780mm wide | 8° upsweep | 8° backsweep
•Grips: Velo Enduro Grips
•Stem: Teewing Enduro 6061 | 40mm | 35mm diameter
•Seatpost: EXA Form | 31.6mm | M - 150mm | L - 170mm | XL - 190mm
•Accessories: User Manual | Torque Wrench | Shock Pump
•Weight: 22.9kgs
•Price:€6899 EU (ROW pricing TBC)
Teewing Flux One Pro
•Frame: Teewing Flux One Carbon |170/178mm travel | MX or full 29in
•Shock: Fox Factory X2 | 205 x 65
•Fork: MY27 Fox 38 Factory | Grip X2 | 180mm
•Drive System: Avinox M2S
•Battery: Avinox integrated 800Wh
•Charger: Avinox Fast Charger | 12A/508W
•Rear Derailleur: Shimano XT Di2
•Shifter: Shimano XT Di2
•Cassette: Shimano XT M8200
•Chain: Shimano SLX M1700
•Crankset: Teewing SL 155mm
•Brakes: Shimano XT | BR220 | 4 Piston
•Discs: Shimano | 203mm
•Wheelset: Formula M7 Pro Hyrbrid | Carbon | 29 (F) 27.5(R) | 30mm internal rim width | 28H | Sapim E-Light straight pull Spokes | Sealed bearings
•Front Tire: Maxxis Assegai 29x2.35, 3C, MaxxGrip, DoubleDown
•Rear Tire: Maxxis Minion DHRII 27.5x2.5, 3C, MaxxTerra, DoubleDown
•Handlebar: Teewing Enduro Carbon | 40mm rise | 35mm diameter | 800mm wide | 5° upsweep | 8° backsweep
•Grips: Velo Enduro Grips
•Stem: Teewing Enduro 7075 CNC | 40mm | 35mm diameter
•Seatpost: Fox Transfer Kashima | 31.6mm | M - 150mm | L - 180mm | XL - 210mm
•Accessories: User Manual | Torque Wrench | Shock Pump
•Weight: 22.9kgs
•Price:€8999 EU (ROW pricing TBC)
