Teewing Flux One Frameset
Medium
$4,500.00 USD
Skip to product information

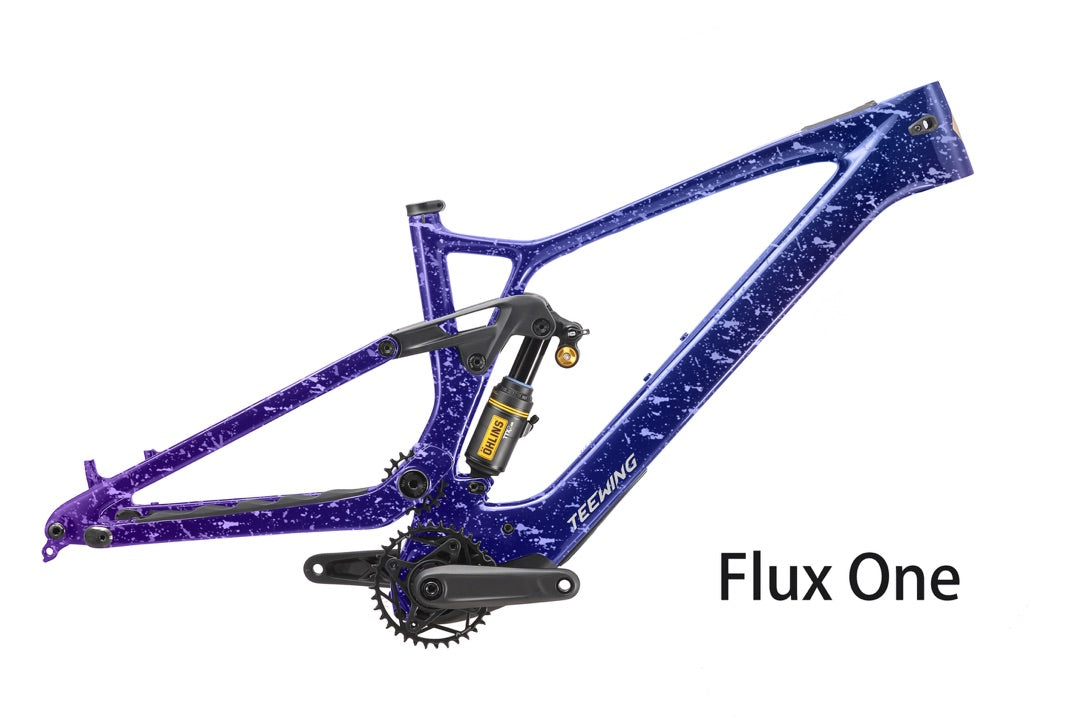

Teewing Flux One Frameset
$4,500.00 USD

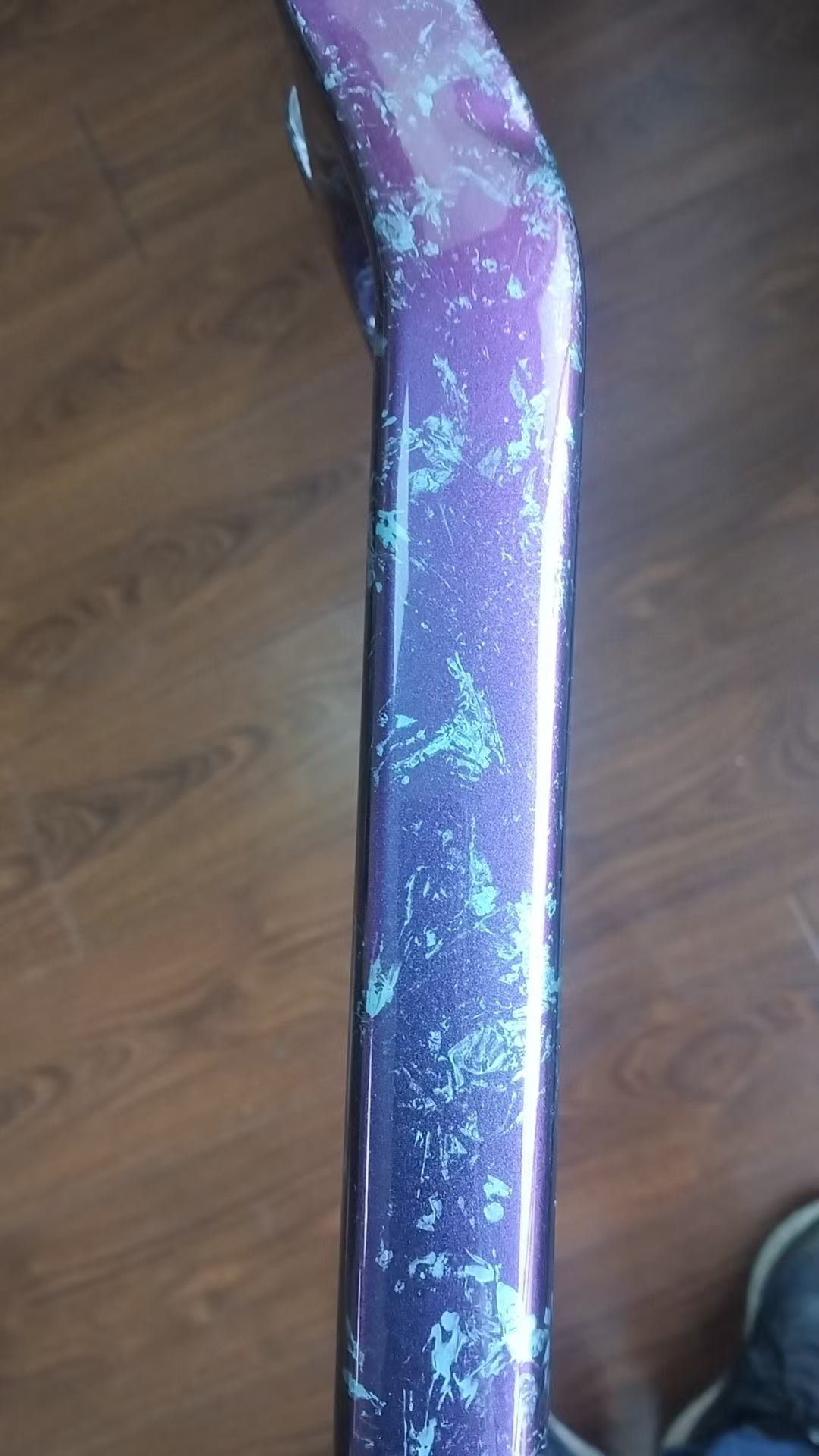

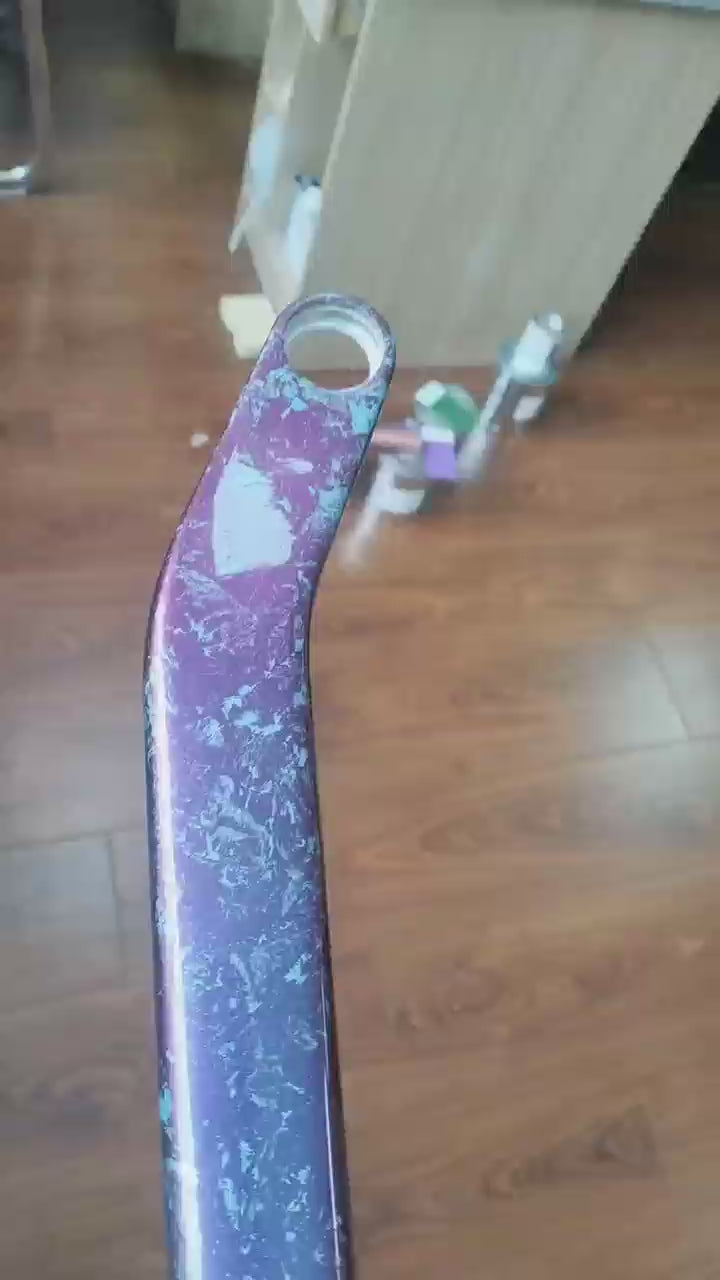

Bike Barn AZ has teamed up with Teewing to offer a custom Blue/Purple frameset with Avinox M2 drive system.
Expected to ship late April
Rear Shock is not included
Flux One Geometry
3 sizes available, ideal for riders from 5’4″ – 6’5″
|
29er Size
|
Med
|
Lg
|
XL
|
|---|---|---|---|
|
A. Reach
|
High: 455mm
Low: 452mm |
High: 480mm
Low: 477mm |
High: 505mm
Low: 502mm |
|
B. Stack
|
High: 633.6mm
Low: 635.6mm |
High: 642.5mm
Low: 644.5mm |
High: 655mm
Low: 657mm |
|
C. Seat Tube Length
|
420mm
|
445mm
|
470mm
|
|
D. Head Tube Length
|
105mm
|
115mm
|
130mm
|
|
E. Seat Tube Angle
|
High 78°
Low 77.7° |
High 78°
Low 77.7° |
High 78°
Low 77.7° |
|
F. Actual Seat Tube Angle
|
High 74°
Low 73.7° |
High 74°
Low 73.7° |
High 74°
Low 73.7° |
|
G. Heat Tube Angle
|
High 63.5°
Low 63.2° |
High 63.5°
Low 63.2° |
High 63.5°
Low 63.2° |
|
H. Chain Stay Length
|
High 450mm
Low 452mm |
High 450mm
Low 452mm |
High 450mm
Low 452mm |
|
I. Fork Length
|
596mm
|
596mm
|
596mm
|
|
J. Fork Rake/Offset
|
44mm
|
44mm
|
44mm
|
|
K. Front Center
|
808mm
|
837.4mm
|
869mm
|
|
L. Top Tube Length
|
589.7mm
|
616.5mm
|
644.3mm
|
|
M. BB Drop
|
High: 25mm
Low: 29mm |
High: 25mm
Low: 29mm |
High: 25mm
Low: 29mm |
|
N. BB Height
|
High: 345mm
Low: 340mm |
High: 345mm
Low: 340mm |
High: 345mm
Low: 340mm |
|
O. Wheelbase
|
1242mm
|
1281.4mm
|
1317.6mm
|
|
Mullet Size
|
Med
|
Lg
|
XL
|
|---|---|---|---|
|
A. Reach
|
High: 458mm
Low: 455mm |
High: 483mm
Low: 480mm |
High: 508mm
Low: 505mm |
|
B. Stack
|
High: 631.1mm
Low: 633.6mm |
High: 640mm
Low: 642.5mm |
High: 652.5mm
Low: 655mm |
|
C. Seat Tube Length
|
420mm
|
445mm
|
470mm
|
|
D. Head Tube Length
|
105mm
|
115mm
|
130mm
|
|
E. Seat Tube Angle
|
High 78.3°
Low 78° |
High 78.3°
Low 78° |
High 78.3°
Low 78° |
|
F. Actual Seat Tube Angle
|
High 74.3°
Low 74° |
High 74.3°
Low 74° |
High 74.3°
Low 74° |
|
G. Heat Tube Angle
|
High 63.8°
Low 63.5° |
High 63.8°
Low 63.5° |
High 63.8°
Low 63.5° |
|
H. Chain Stay Length
|
High 450mm
Low 452mm |
High 450mm
Low 452mm |
High 450mm
Low 452mm |
|
I. Fork Length
|
596mm
|
596mm
|
596mm
|
|
J. Fork Rake/Offset
|
44mm
|
44mm
|
44mm
|
|
K. Front Center
|
808mm
|
837.4mm
|
869mm
|
|
L. Top Tube Length
|
589.7mm
|
616.5mm
|
644.3mm
|
|
M. BB Drop
|
High: 6mm
Low: 10mm |
High: 6mm
Low: 10mm |
High: 6mm
Low: 10mm |
|
N. BB Height
|
High: 350mm
Low: 345mm |
High: 350mm
Low: 345mm |
High: 350mm
Low: 345mm |
|
O. Wheelbase
|
1232mm
|
1271.4mm
|
1307.6mm
|
